Icon Dark

독창적이면서도 세련된 매력이 넘치는 아이콘 다크는 스크램블러 커스터마이저들의 거친 꿈의 영감을 바탕으로 라이더의 숨어있던 욕구를 채우고 개성을 표현하기 위해 태어났습니다.
The New Icon Dark
Joyvoution. Dark mode:on.
Enjoy the Video!
Paint It Black
So dark, so bright.
Here comes the new Icon Dark.

기본에 충실하면서 스타일리시한 아이콘 다크는 스크램블러 라인업 중 커스터마이징에 가장 적합한 모델입니다.
A Closer Look

매트 블랙의 색상으로 새로운 룩을 선사하는 Icon Dark를 자세히 알아보세요.
Act the #Joyvolution!

Scrambler®과 함께 조이 오브 랜드에서 긍정적이고 즐거우며 자유분방하게 날아오르세요.
The numbers

당신이 필요로 하는 모든 세부 사항과 사양
Type

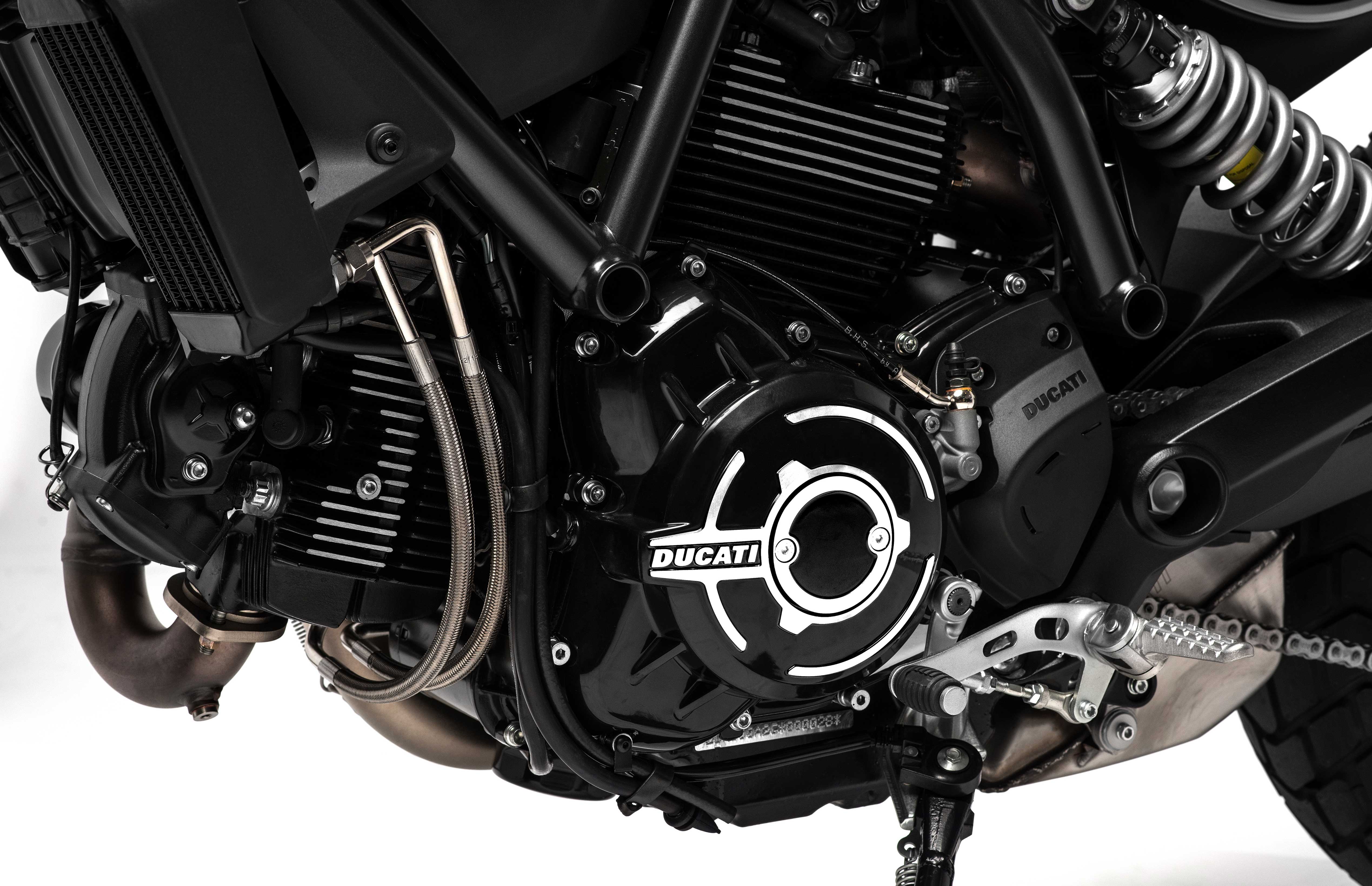

L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement
803 cc
Bore x stroke
88 x 66 mm
Compression ratio
11:01
Power*
54 kW (73 hp) @ 8,250 rpm
Torque*
67 Nm (49 lb-ft) @ 5,750 rpm
Fuel injection
Electronic fuel injection, 50 mm throttle body
Exhaust
Exhaust system with single stainless steel muffler, aluminium silencer cover, catalytic converter and 2 lambda probes
Standard
Euro 5
Consumption - Emissions
5,0 l/100 km - 117 g/km
Gearbox
6 speed
Ratio
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive
Straight cut gears, Ratio 1,85:1
Final drive
Chain, front spocket 15, rear sprocket 46
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch
Frame
Tubular steel Trellis frame
Front suspension
Upside down Kayaba 41 mm fork
Front wheel travel
150 mm (5,9 in)
Front wheel
10-spoke in light alloy, 3.00" x 18"
Front tyre
Pirelli MT 60 RS 110/80 R18

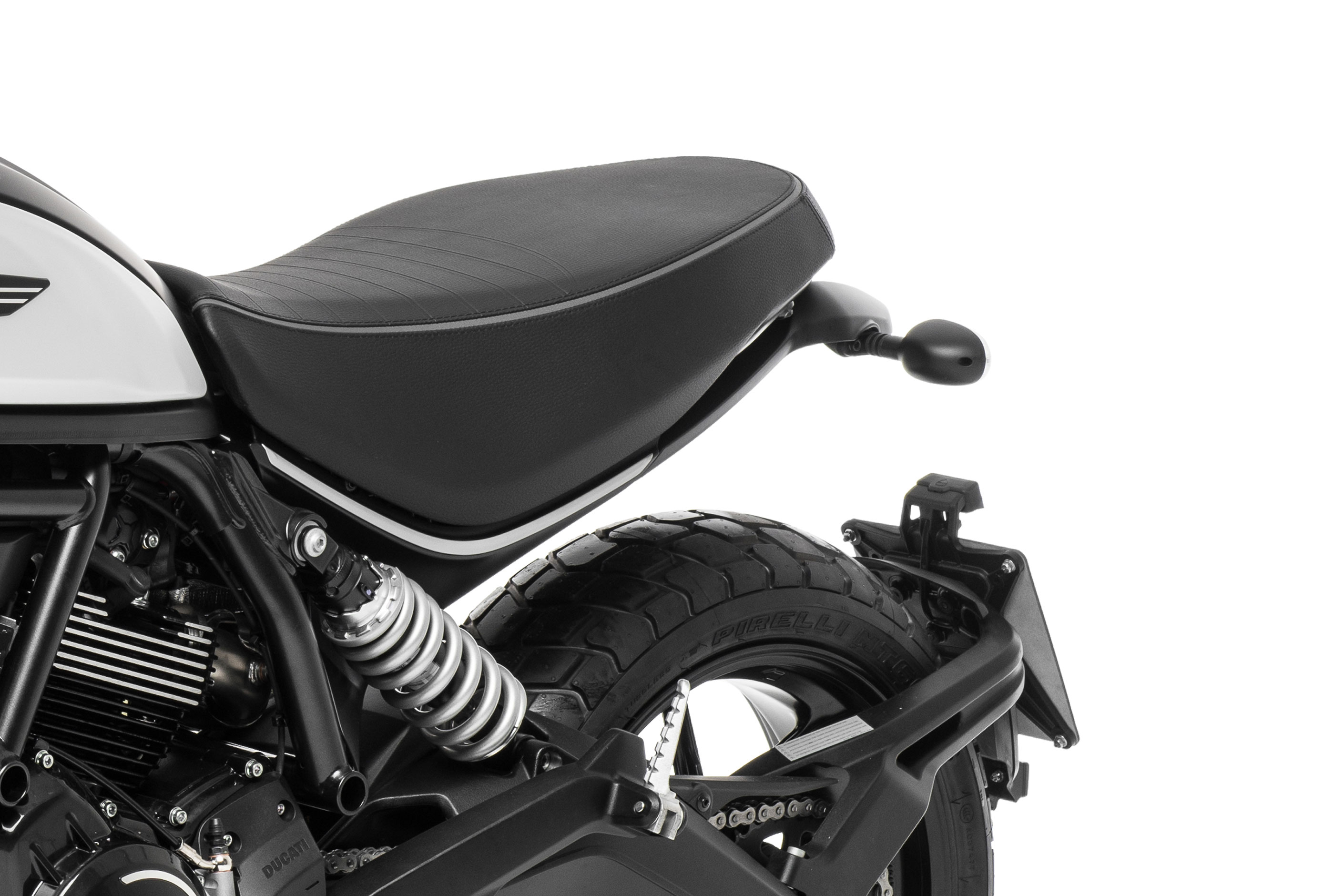

Rear suspension
Kayaba rear shock, pre-load adjustable.
Rear wheel travel
150 mm (5,9 in)
Rear wheel
10-spoke in light alloy, 5.50" x 17"
Rear tyre
Pirelli MT 60 RS 180/55 R17
Front brake
Ø330 mm disc, radial 4-piston calliper with Bosch Cornering ABS as standard equipment
Rear brake
Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment
Dashboard

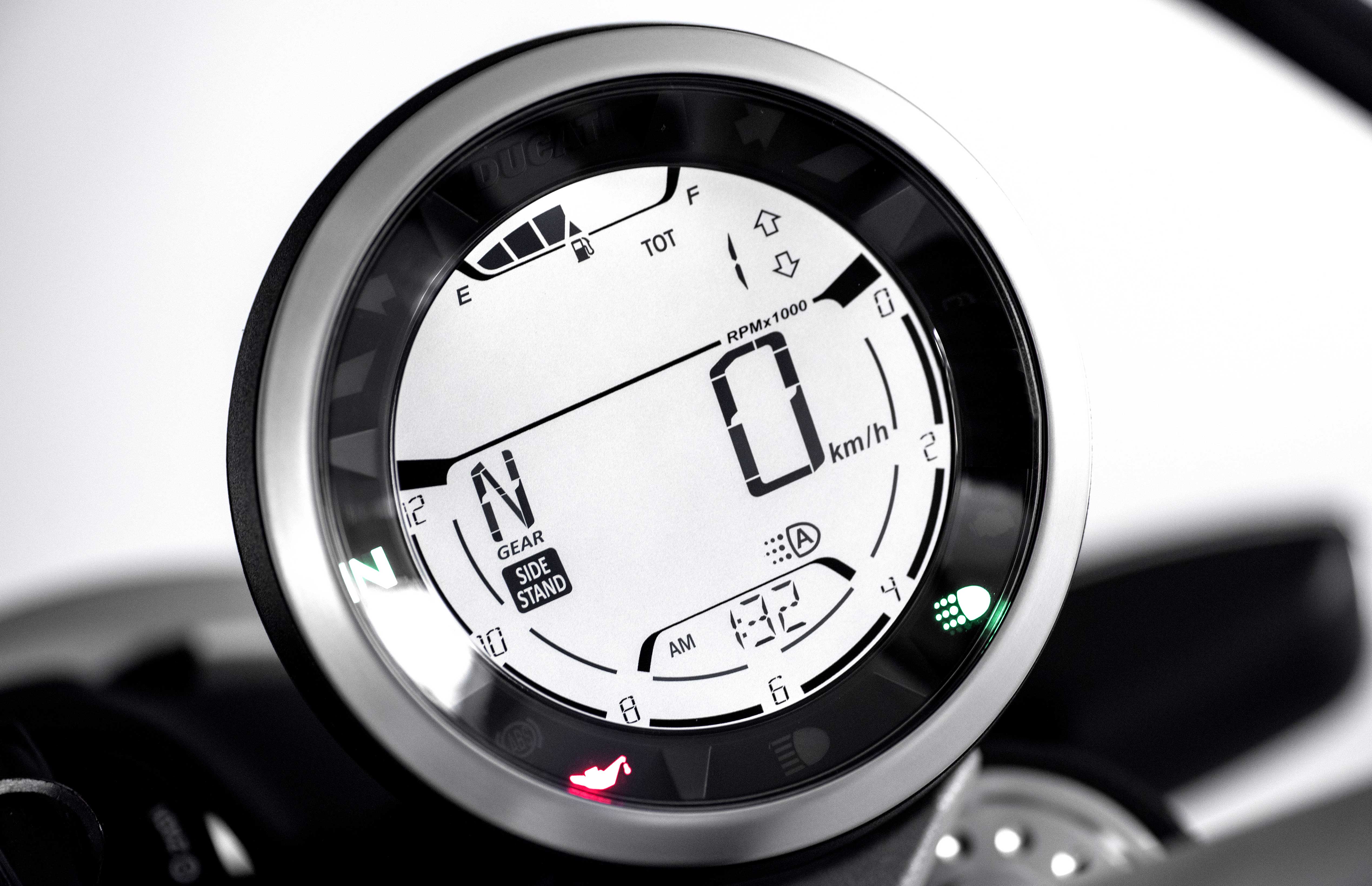

LCD
Wheelbase
1.445 mm (56.9 in)
Rake
24°
Trail
112 mm (4,4 in)
Total steering lock
35°
Fuel tank capacity
13,5 l - 3,57 gallon (US)
Dry weight
173 kg (381 lb)
Wet weight**
189 kg (417 lb)
Seat height
798 mm (31,4 in) - low seat 778 mm (30,6 in) available as accessory
Max height
1.150 mm (45,3 in) (brake reservoir)
Max width
855 mm (33,7 in) (mirrors)
Max length
2.100 - 2.165 mm (82.7 - 85.2 in)
Number of seats
Dual seat
Standard equipment

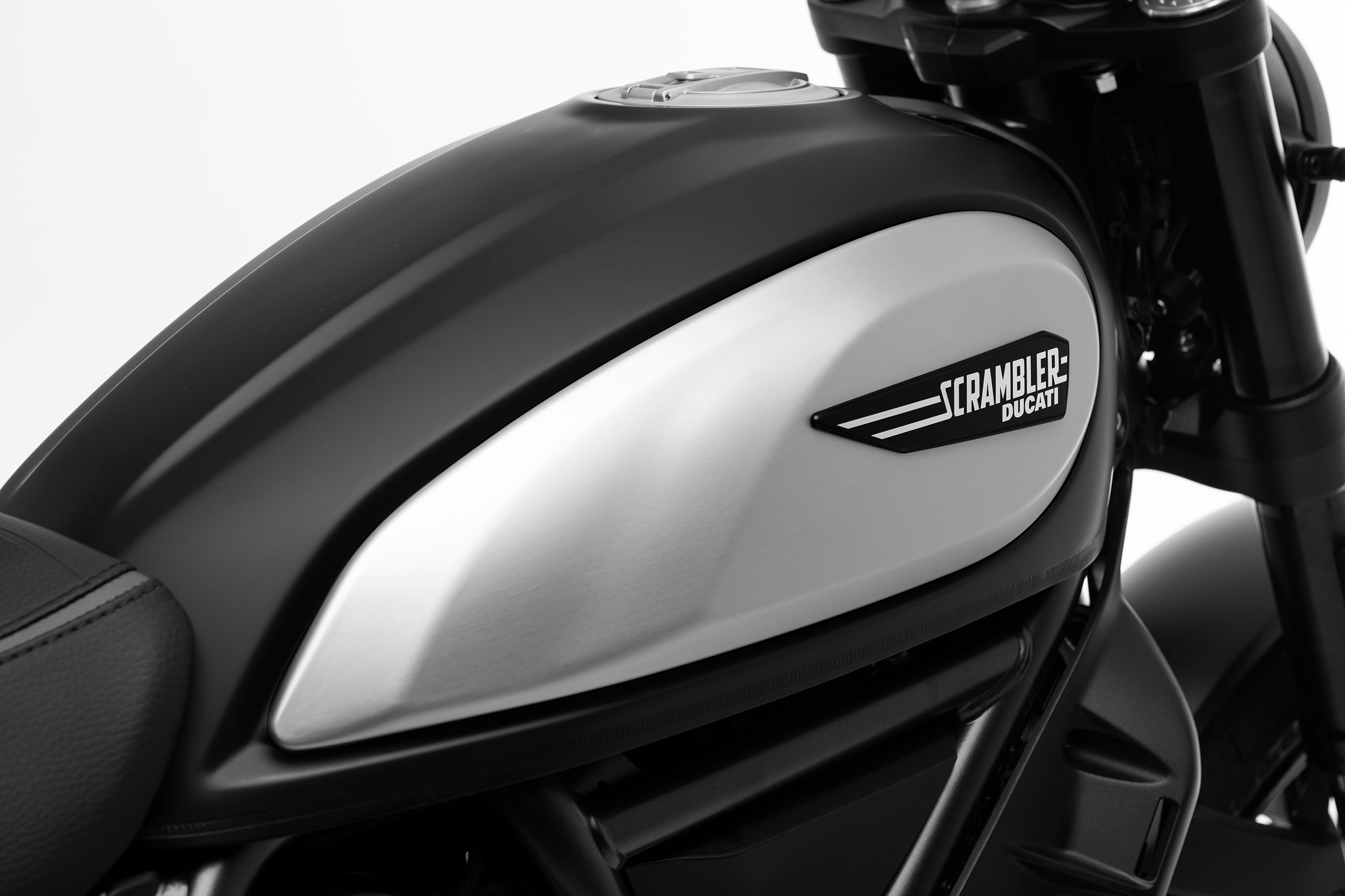

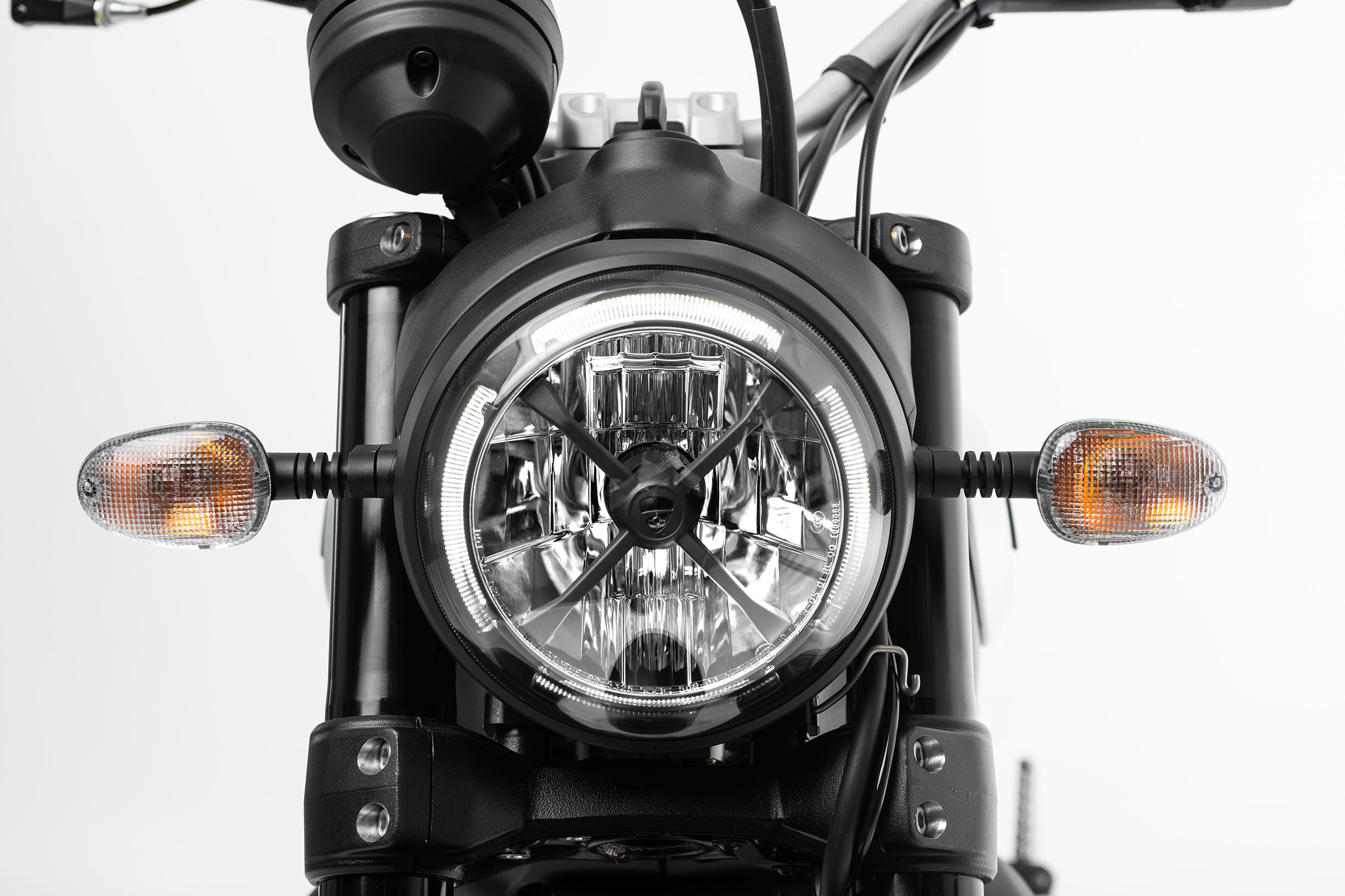

Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins.
ICON equipment
Dedicated logo, dedicate handlebar, matching mudguards, aluminium muffler cover
Details
24 months unlimited mileage
Service
12,000 km (7.500 mi) / 12 months
Checking valve clearance
12,000 km (7.500 mi)
*Power/Torque
The power/torque values indicated are measured using and engine dynamometer according to homologation regulation and they correspond to the homologated data, as quoted in the Bike Registration Document
**Wet weigth
The weights in running order are considered with all operating fluids, standard equipment and the fuel tank filled to 90% of its useful capacity (UE regulation no. 168/2013).
