Icon
반항적이고 경제적이며 필수적인 Ducati Scrambler®은 전통과 혁신의 완벽한 조합입니다. 새로워진 두카티 스크램블러는 더욱 현대적이고, 편안하며, 안전하고, 걱정 없는‘랜드 오브 조이’의 즐거움을 보장해줍니다.
#Joyvolution!
More stylish, spicy and fun.
The new Icon is here.

Enjoy the Video!
Cool New Features
최신 Scrambler®을 탐험해보십시오. 이 전설적인 바이크는 새로운 디자인 덕분에 진정한 현대적 모습으로 재탄생합니다.

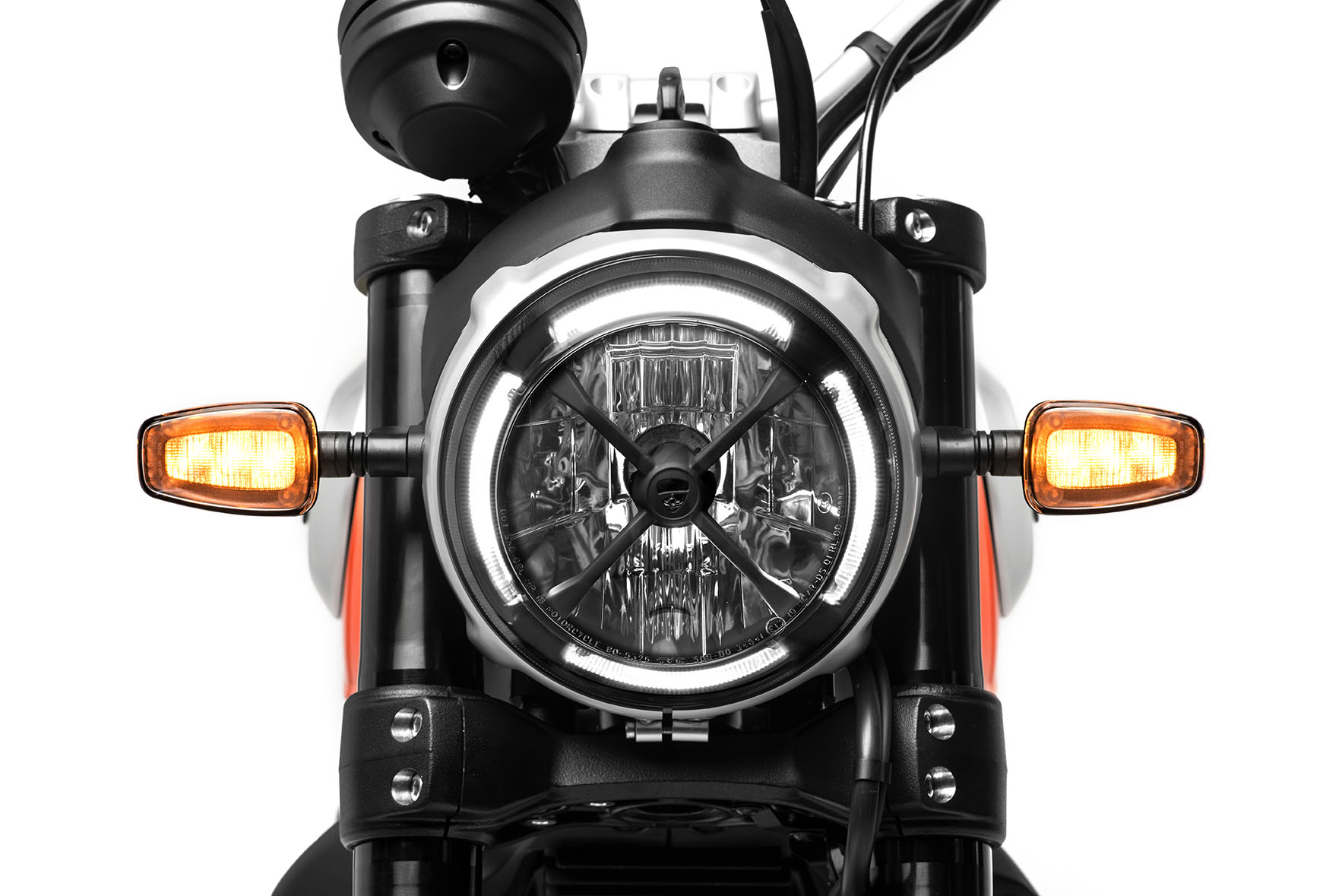

렌즈와 DRL(주간 주행등)이 장착된 헤드라이트. LED 방향 지시등.

준비된 두카티 멀티미디어 시스템. 새롭게 선택된 기어 표시기와 연료량 표시기. 새로운 핸들 바 스위치 컨트롤. 조정 레버가 있는 유압식 클러치 컨트롤.

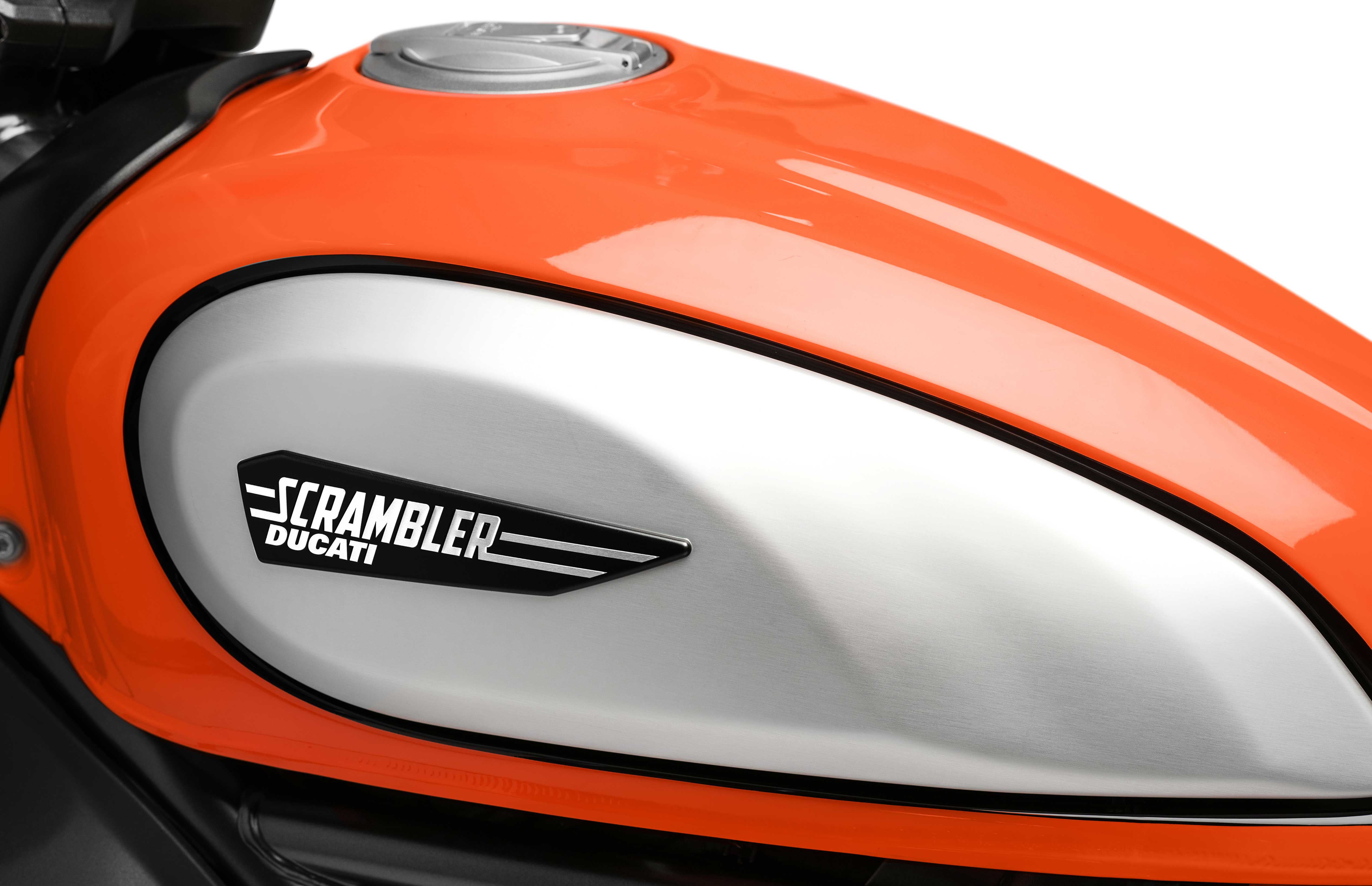

새로운 어타믹탄제린 색상. 새로운 교체 가능한 알루미늄 머슬 사이드 패널. 기계 마감 처리된 알루미늄 벨트 커버. 새로운 머플러 커버.

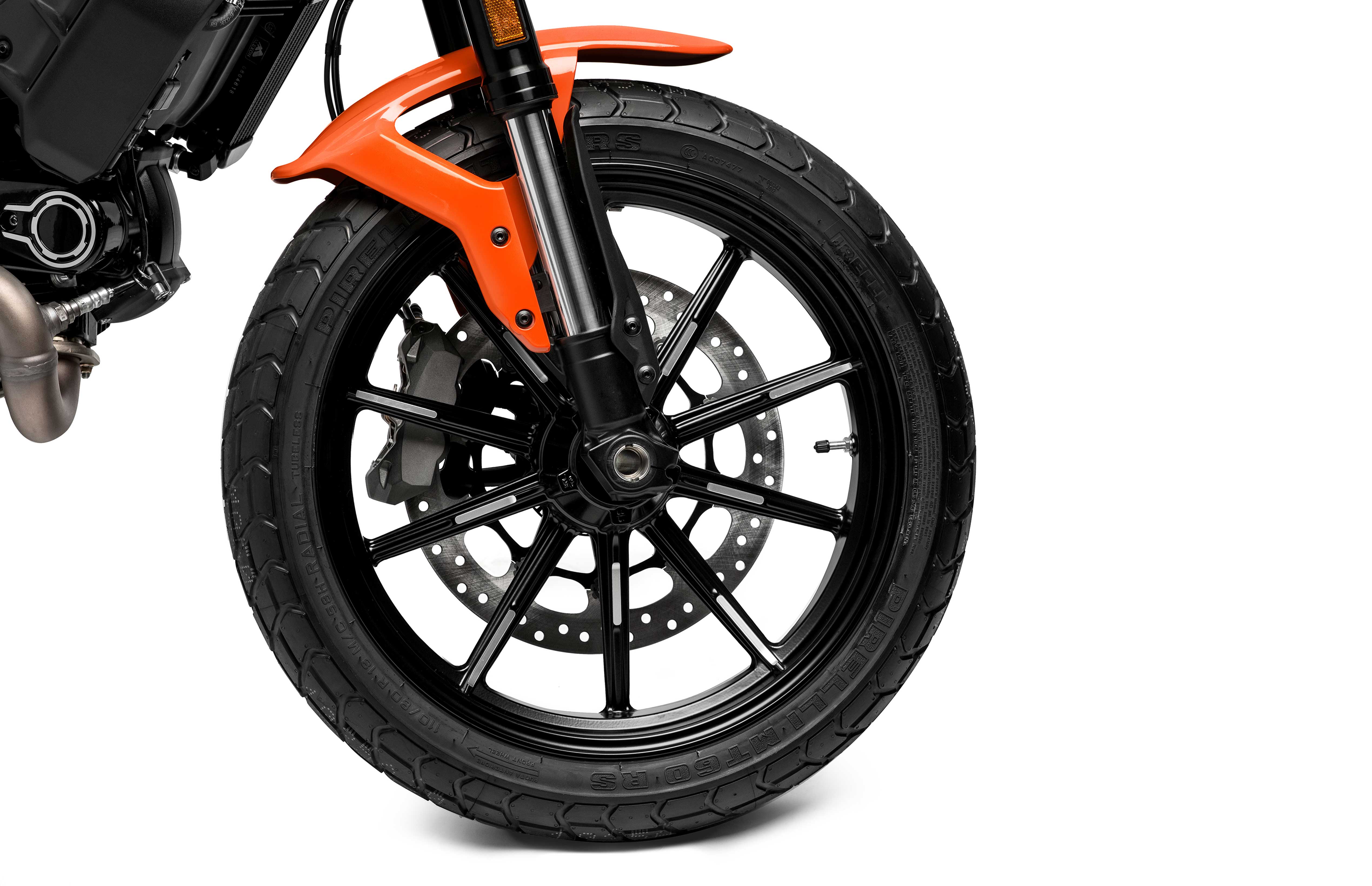

스크램블러 1100에서 파생된 새로운 알루미늄 10-스포크 휠

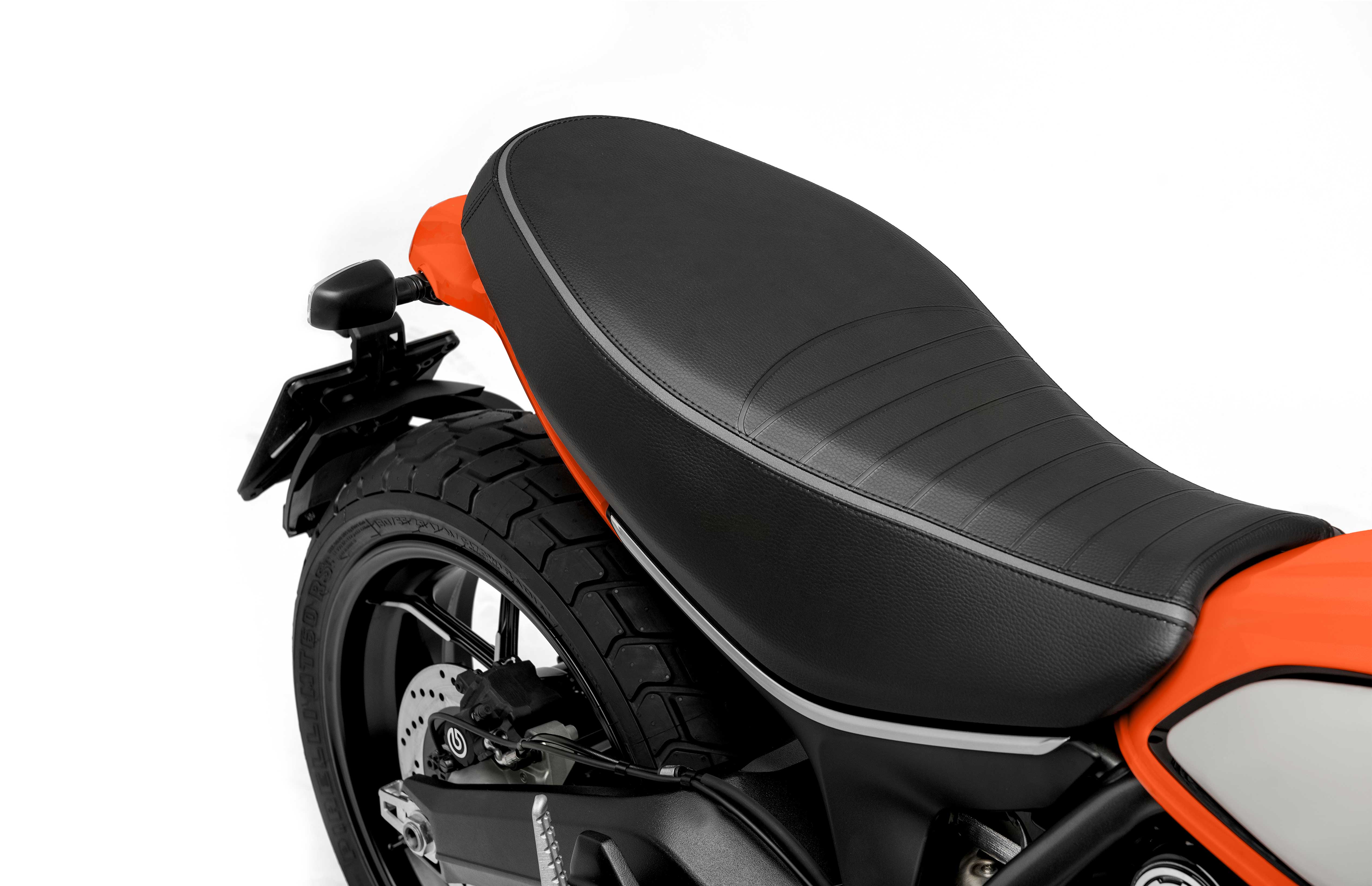

라이더와 동승자를 위한 더욱 편평하고 안락한 브랜드뉴 시트. 향상된 서스펜션 설정.

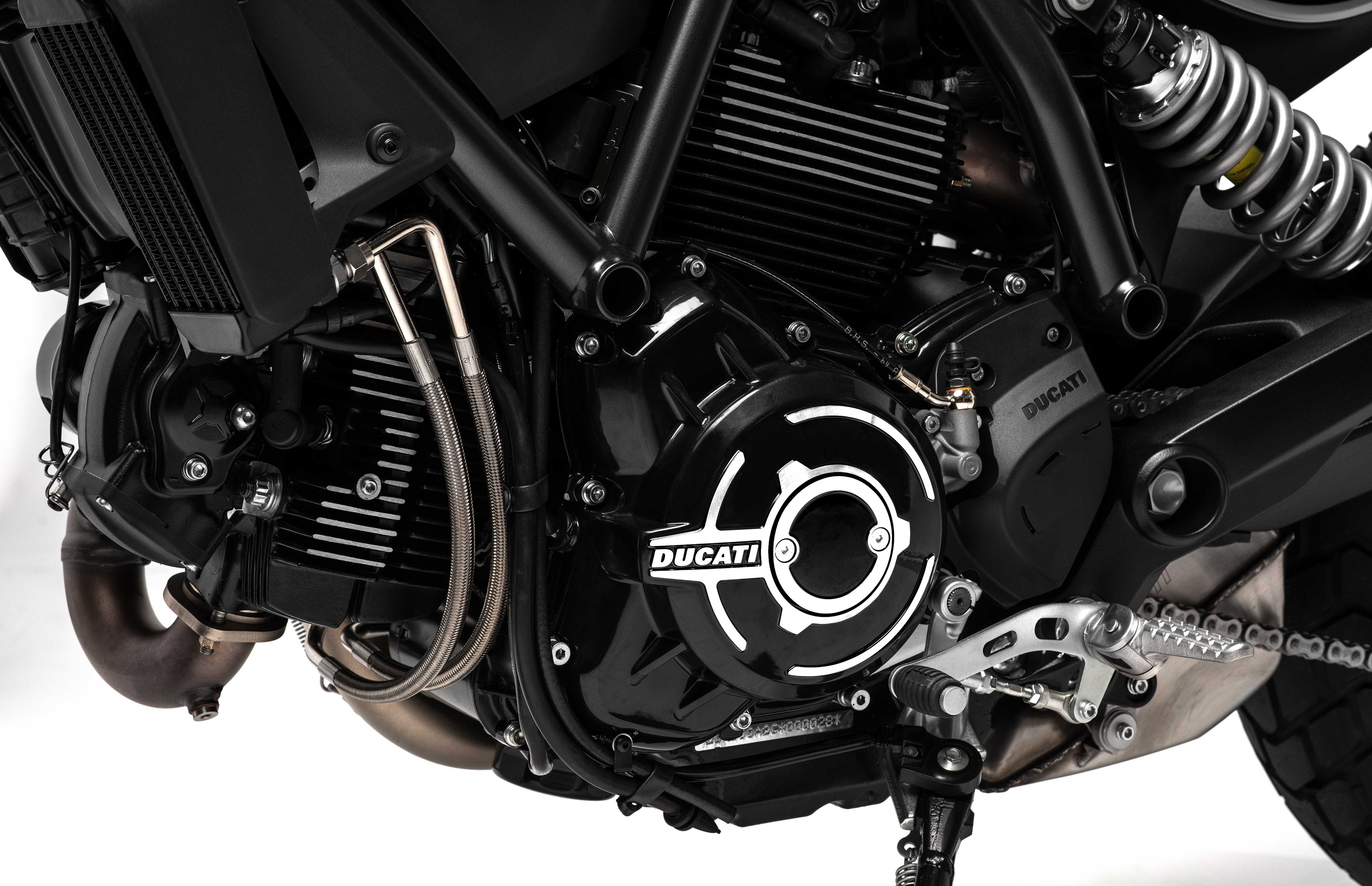

새로운 엔진 마감. 블랙 실린더 헤드와 브러시 알루미늄 핀

듀얼 채널 Bosch 코너링 ABS

A Closer Look
클래식한 “62 옐로우”와 새로운 “어타믹탄제린” 색상의새로운 Scrambler®를 만나보세요.
Color
Rotate Side
Act the #Joyvolution!
Scrambler®과 함께 조이 오브 랜드에서 긍정적이고 즐거우며 자유분방하게 날아오르세요.
The numbers
당신이 필요로 하는 모든 세부 사항과 사양
Engine
Transmission
Chassis
Dimensions and weight
Warranty
NOTE
Type
L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement
803 cc
Bore x stroke
88 x 66 mm
Compression ratio
11:1
Power*
54 kW (73 hp) @ 8,250 rpm
Torque*
67 Nm (49 lb-ft) @ 5,750 rpm
Fuel injection
Electronic fuel injection, 50 mm throttle body
Exhaust
Exhaust system with single stainless steel muffler, aluminium silencer cover, catalytic converter and 2 lambda probes
Standard
Euro 5
Consumption - Emissions
5,0 l/100 km - 117 g/km
Gearbox
6 speed
Ratio
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive
Straight cut gears, Ratio 1,85:1
Final drive
Chain, front spocket 15, rear sprocket 46
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch
Frame
Tubular steel Trellis frame
Front suspension
Upside down Kayaba 41 mm fork
Front wheel travel
150 mm (5,9 in)
Front wheel
10-spoke in light alloy, 3.00" x 18"
Front tyre
Pirelli MT 60 RS 110/80 R18
Rear suspension
Kayaba rear shock, pre-load adjustable.
Rear wheel travel
150 mm (5,9 in)
Rear wheel
10-spoke in light alloy, 5.50" x 17"
Rear tyre
Pirelli MT 60 RS 180/55 R17
Front brake
Ø330 mm disc, radial 4-piston calliper with Bosch Cornering ABS as standard equipment
Rear brake
Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment
Dashboard
LCD
Wheelbase
1.445 mm (56.9 in)
Rake
24°
Trail
112 mm (4,4 in)
Total steering lock
35°
Fuel tank capacity
13,5 l - 3,57 gallon (US)
Dry weight
173 kg (381 lb)
Wet weight**
189 kg (417 lb)
Seat height
798 mm (31,4 in) - low seat 778 mm (30,6 in) available as accessory
Max height
1.150 mm (45,3 in) (brake reservoir)
Max width
855 mm (33,7 in) (mirrors)
Max length
2.100 - 2.165 mm (82.7 - 85.2 in)
Number of seats
Dual seat
Standard equipment
Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins.
ICON equipment
Dedicated logo, dedicate handlebar, matching mudguards, aluminium muffler cover
Details
24 months unlimited mileage
Service
12,000 km (7.500 mi) / 12 months
Checking valve clearance
12,000 km (7.500 mi)
*Power/Torque
The power/torque values indicated are measured using and engine dynamometer according to homologation regulation and they correspond to the homologated data, as quoted in the Bike Registration Document
**Wet weigth
The weights in running order are considered with all operating fluids, standard equipment and the fuel tank filled to 90% of its useful capacity (UE regulation no. 168/2013).
