Desert Sled

새로운 스크램블러데저트슬레드는캘리포니아와 뉴 멕시코의 가장 거친 도로 위를 벗어나,색다른 길과 사람들이 잘 다니지 않는 길을 사랑하는 사람들을 위해 디자인되었습니다.
스크램블러의 본질적이고 웅장한 이번 버전은 오프로드 정신과 라이프스타일 가치의 독특한 조합을 제공합니다.
#Joyvolution!
Even more off-road.
Even more Scrambler.
Here is the new Desert Sled.
Enjoy the Video!
Cool New Features

최신 스크램블러데저트슬레드를 탐험해보십시오. 60년대와 70년대 미국의 오프로드 바이크 정신과 스크램블러 스타일만의 독창성이 완벽하게 조화를 이룹니다.
A Closer Look

스크램블 데저트슬레드의 새로운 모습을 찾아보세요 레드 프레임과 블랙 스포크휠의 “화이트미라지” 색상으로 제공됩니다.
Act the #Joyvolution!

Scrambler®과 함께조이 오브 랜드에서 긍정적이고 즐거우며 자유분방하게 날아오르세요.
The numbers

당신이 필요로 하는 모든 세부 사항과 사양
Type
L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement
803 cc
Bore x stroke
88 x 66 mm
Compression ratio
11:1
Power*
73 hp (54 kW) 8250 rpm/min
Torque*
49 lb-ft (67 Nm) @ 5750 rpm
Fuel injection
Electronic fuel injection, 50 mm throttle body
Exhaust
Stainless steel muffler with catalytic converter and 2 lambda probes, aluminium tail pipes
Standard
Euro 4
Consumption - Emissions
5,1 l/100 km - CO2 119 g/km
Gearbox
6 speed
Ratio
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive
Straight cut gears, Ratio 1,85:1
Final drive
Chain, front spocket 15, rear sprocket 46
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch
Frame
Tubular steel Trellis frame
Front suspension
46mm fully adjustable usd forks
Front wheel travel
200 mm (7,9 in)
Front wheel
Spoked aluminium wheel 3,00" x 19"

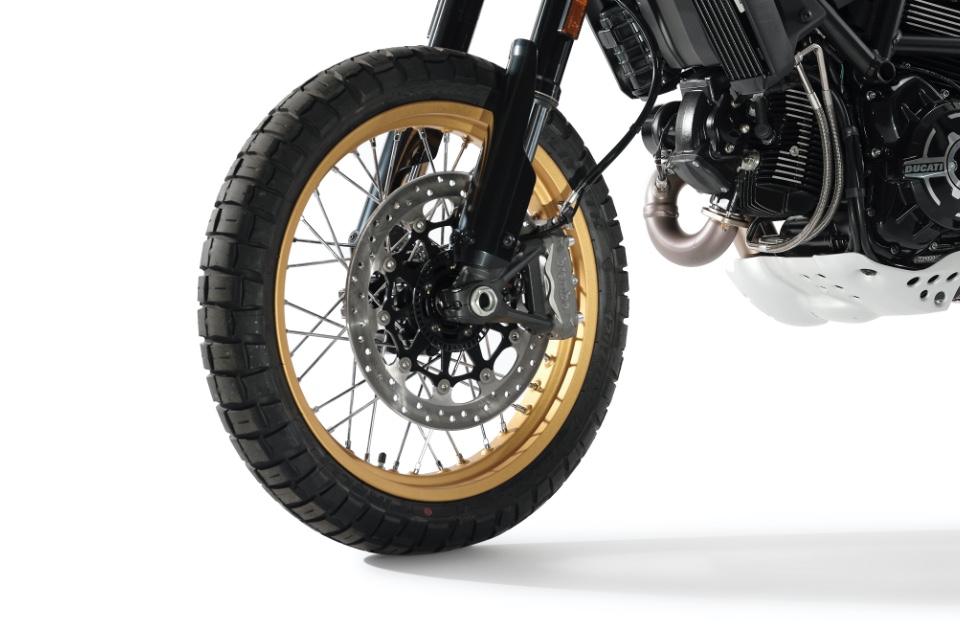

Front tyre
Pirelli SCORPION™ RALLY STR 120/70 R19
Rear suspension
Kayaba rear shock, pre-load and rebound adjustable. Aluminium double-sided swingarm
Rear wheel travel
200 mm (5,9 in)
Rear wheel
Spoked aluminium wheel 4,50" x 17"
Rear tyre
Pirelli SCORPION™ RALLY STR 170/60 R17
Front brake
Ø330 mm disc, radial 4-piston calliper with Bosch Cornering ABS as standard equipment
Rear brake
Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment

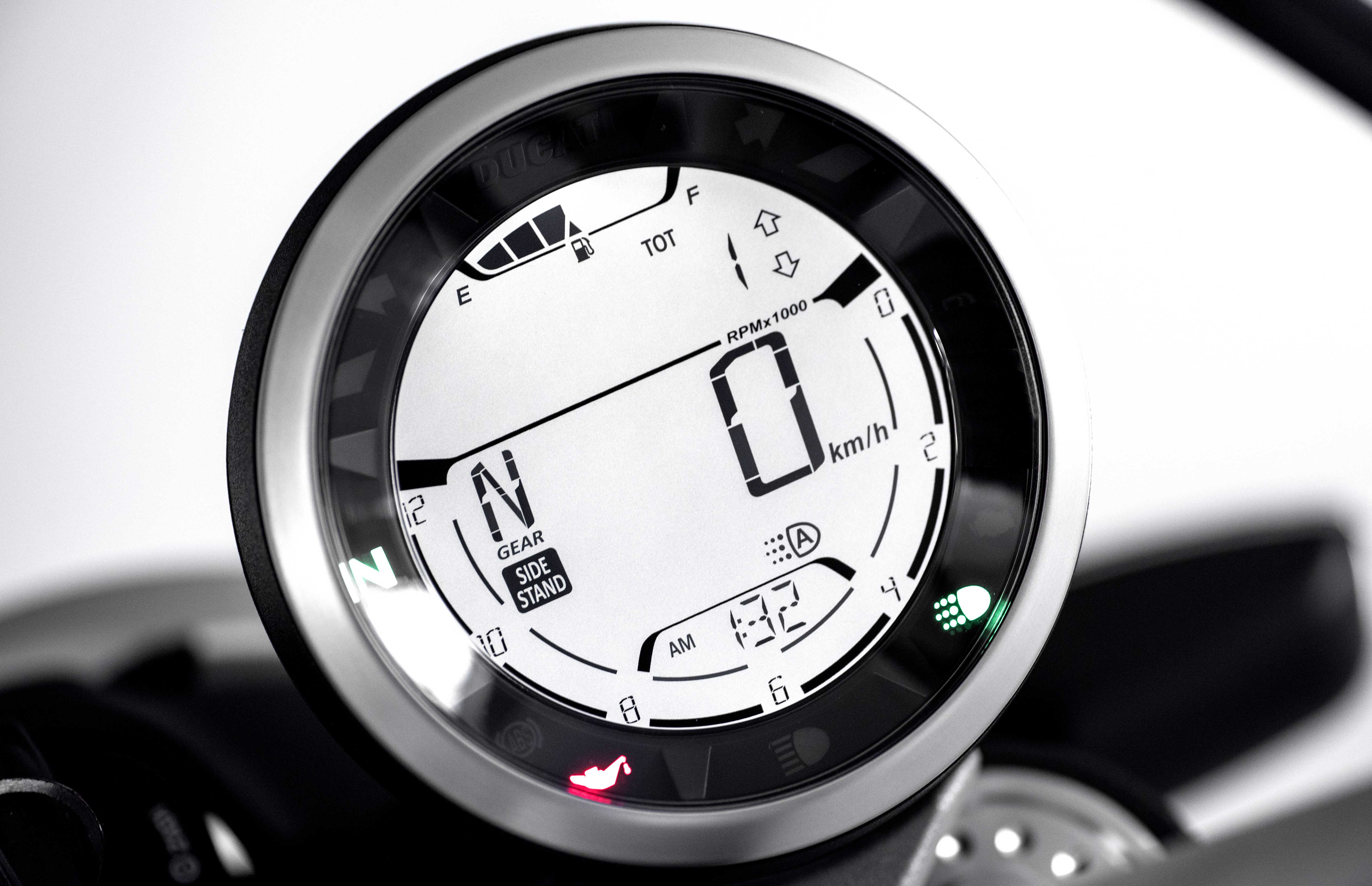

Dashboard
LCD
Wheelbase
1.505 mm (59,3 in)
Rake
24°
Trail
112 mm (4,4 in)
Total steering lock
35°
Fuel tank capacity
13,5 l - 3,57 gallon (US)
Dry weight
193 kg (425,5 lb)
Wet weight**
209 kg (460,8 lb)
Seat height
860 mm (33,9 in) - low seat 840 mm (33,0 in) available as accessory
Max height
1.213 mm (47,8 in) (brake reservoir)
Max width
940 mm (37,0 in) (mirrors)
Max length
2.200 mm (86,6 in)
Number of seats
Dual seat
Standard equipment

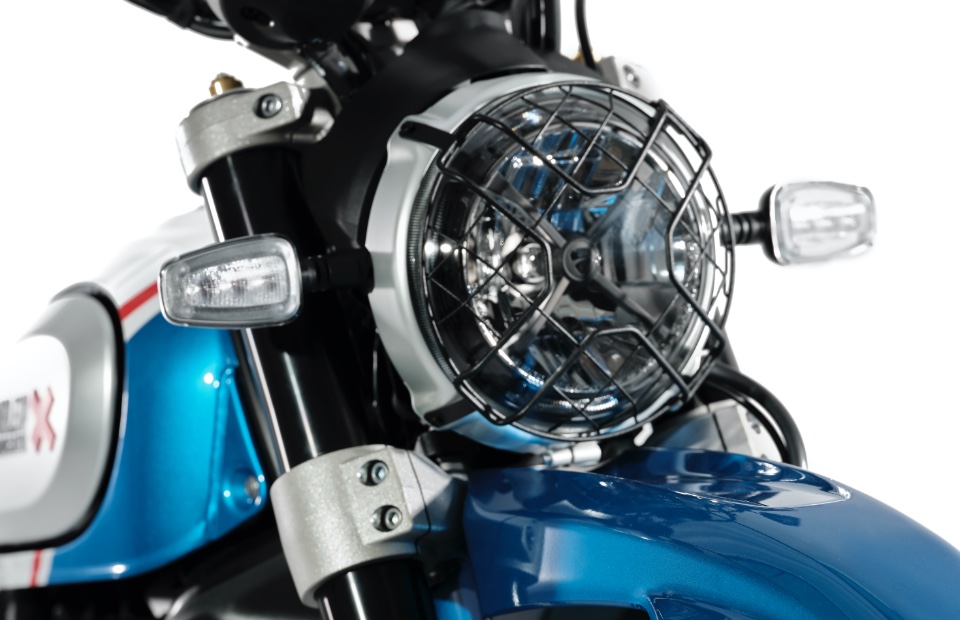

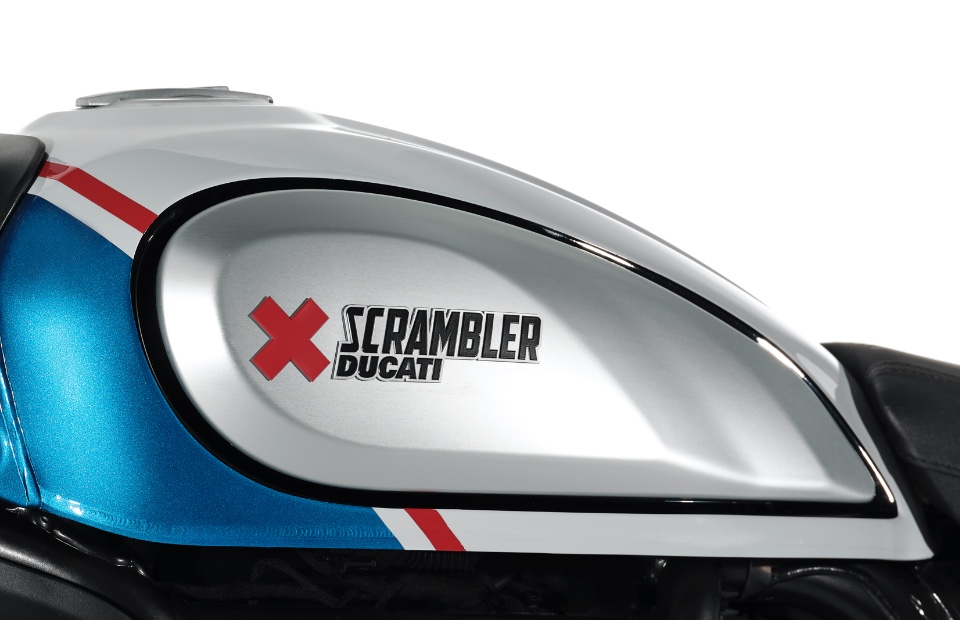

Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins.
DESERT SLED equipment

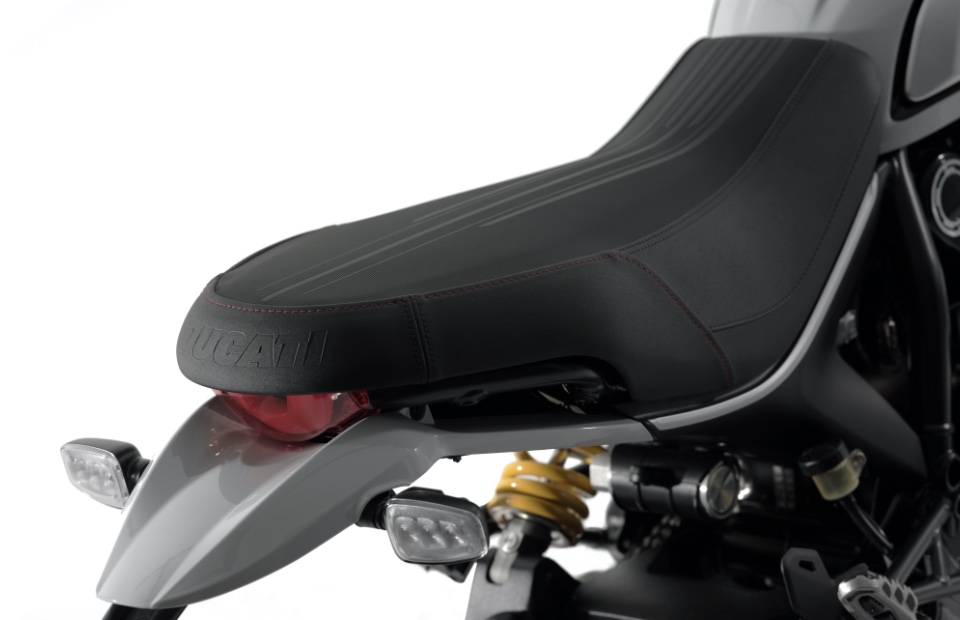

Aluminium handlebar with cross-strut, front stem protectors, seat with specific design, high front mudguard, long rear mudguard and high plate support
Details
24 months unlimited mileage
Servicing
12,000 km (7.500 mi) / 12 months
Checking valve clearance
12,000 km (7.500 mi)
*Power/Torque
The power/torque values indicated are measured using and engine dynamometer according to homologation regulation and they correspond to the homologated data, as quoted in the Bike Registration Document.
**Wet weigth
The weights in running order are considered with all operating fluids, standard equipment and the fuel tank filled to 90% of its useful capacity (UE regulation no. 168/2013).
